MeLE Overclock4C Mini PC - Intel 12th Gen Alder Lake-N100 Processor (Up to 3.4GHz, 4C/4T), 32GB DDR4 RAM, 512GB SSD - 4K Triple Display Micro Desktop Computer with USB-C, USB 3.2, WiFi, Bluetooth & Ethernet - Perfect for Business, Home Office & Gaming
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:7 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:64606421
Product Description
MeLE Overclock 4C Micro PC with N100 16GB/32GB RAM 512GB SSD Processor Quad Core Alder Lake N100 with TDP 15W RAM 16GB/32GB Single Channel DDR4 (SO-DIMM)，Support Ram upgrade via the Ram Slot Storage Slot 1*M.2 22x80 512GB PCIe SSD , 1* micro sd slot UnBlocked Bios Support PXE Boot/iPXE Boot, Wake On LAN,Auto Power On, Wake On Line Connectivity WiFi 5 Support MU-MIMO, dual band wifi 2.4Ghz/5.0Ghz, Bluetooth 5.1, Gigabit Ethernet Multi I/O Port 2*USB3.2 Gen 2=10Gbps, 1*USB 2.0=480Mbps, 1*USB-C 3.2 Gen2=10Gbps, 2*HDMI2.0, 1*Micro SD, 1*Ethernet Port RJ-45, 1*3.5mm Audio Jack 1*All-in-One USB-C Full function, Combines DisplayPort (DP 1.4), USB 3.2 Gen2 and Power input(With PD3.0 protocol ), all in one cable. 12V~18V 1*USB-C for DC IN Power input only ,DC IN 12V/3A, 12V~20V,Support PD3.0 Protocol The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. hero-video Merchant video Previous page Next page Previous page Next page Previous page Next page Choose MeLE Mini PC, Choose Professional Partner Overclock4C N100 with Fan Quieter4C N100 PCG02 Pro N100 PCG02 Sitck PC J4125 Processor Alder Lake N100 Alder Lake N100 Alder Lake N100 Celeron J4125 Burst Frequency, TDP 3.4GHz, 15W 3.4GHz, 8W 3.4GHz, 8W 2.0GHz/2.7GHz, 10W Core/Thread 4C/4T, 6MB Smart Cache 4C/4T, 6MB Smart Cache 4C/4T, 6MB Smart Cache 4C/4T, 4 MB Cache RAM 16GB/32GB DDR4 (3200 MHz) 8GB/16GB LPDDR4x (4266MHz) 8GB LPDDR4x (4266MHz) 8GB LPDDR4 (2133 MHz) ROM 512GB (eMMC+SSD) 128GB/256GB/512GB (eMMC+SSD) 128GB/256GB (eMMC) 128GB (eMMC) Storage Expansion M.2 2280 SATA SSD & NVMe SSD M.2 2280 SATA SSD & NVMe SSD N/A N/A WiFi WiFi 5 (802.11ac), 2.4G+5.0G WiFi 5 (802.11ac), 2.4G+5.0G WiFi 5 (802.11ac), 2.4G+5.0G WiFi 5 (802.11ac), 2.4G+5.0G Bluetooth Bluetooth 5.1 Bluetooth 5.1 Bluetooth 5.1 Bluetooth 4.2 Video Interface 2*HDMI2.0 + 1*USB-C (4K@60Hz) 2*HDMI2.0 + 1*USB-C (4K@60Hz) 2*HDMI2.0 (4K@60Hz) 1*HDMI 2.0 (male,4K@60Hz) Data Transfer Interface 2*USB3.2, 1*USB2.0, 1*USB-C 2*USB3.2, 1*USB2.0, 1*USB-C 2*USB3.2, 1*USB-C 2*USB3.2 Auto Power On/WOL/PXE/RTC Wake ✔ ✔ ✔ ✔ Win11/10,Linux,Ubuntu,Debian ✔ ✔ ✔ ✔ How to set auto power on for MeLE Overclock 4C? Press the power button and press F7 or Delete continuously to enter select boot device menu->select Enter Setup and press Enter to enter into BIOS Setting menu->Advanced->Customer Exclusive Functions->Auto Power on->Enabled->Save & Exit. Does it support a M.2 2280 SATA SSD? Yes, it is built in a 1*M.2 22x80 Key M Slot for PCIe3.0 x4, it support M.2 2280 SATA SSD & NVMe SSD up to 4TB. Why the 256GB eMMC Storage only displays 228GB storage on the computer? It is because of the different matrix methods between PC and HDD/SSD/eMMC.Computer matrixing:1KB=1024Byte，1MB=1024KB，1GB=1024MB, HDD/SSD/eMMC supplier's matrixing:1KB=1000Byte，1MB=1000KB，1GB=1000MB. Why the Wi-Fi and Bluetooth Drivers are missing on Linux OS? You are welcome to visit MeLE official site to download Wi-Fi and Bluetooth Driver for Linux OS. and it is important to check the Kernels versions.
Product Features

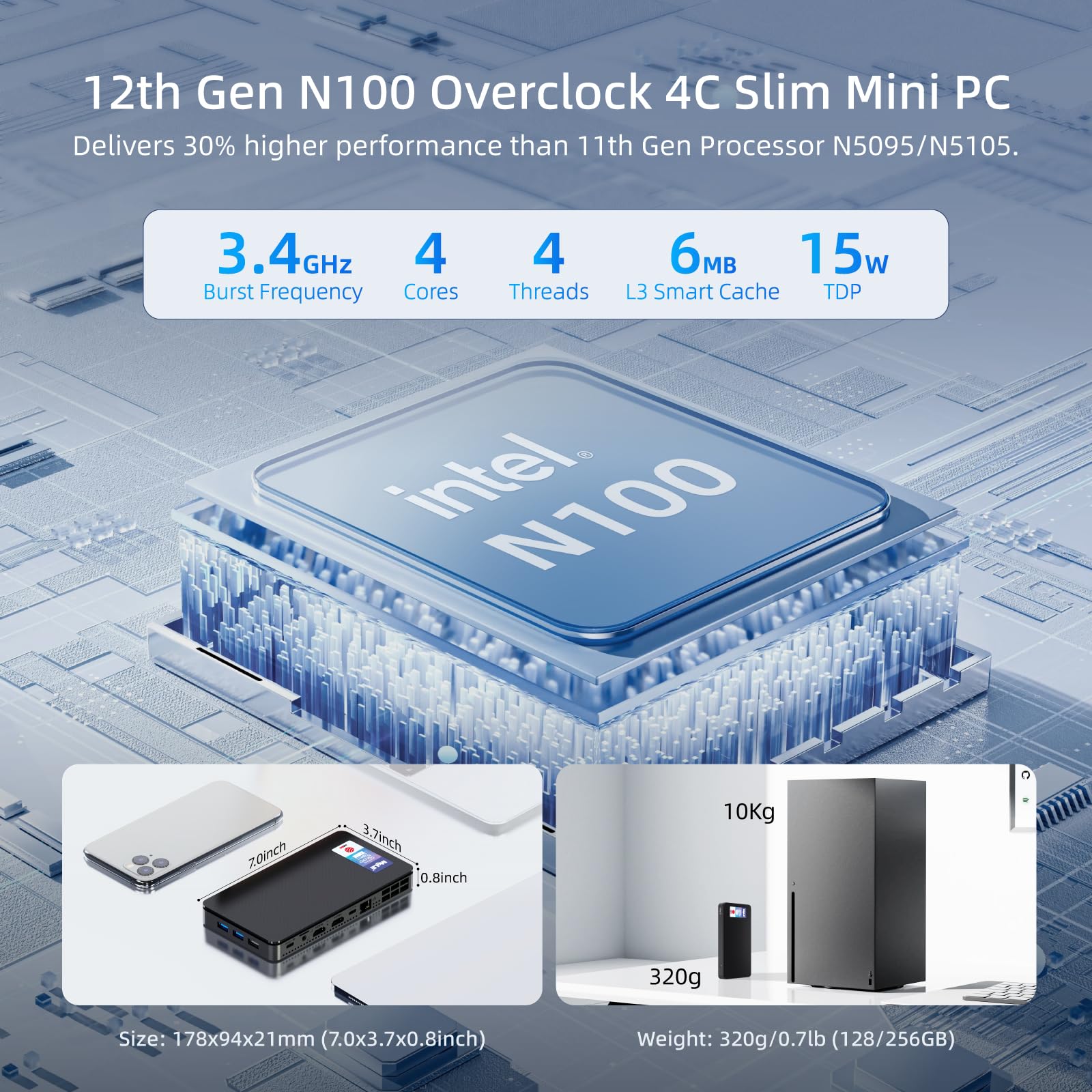

Powerful 12th Alder Lake N100 -- MeLE Overclock 4C micro pc powered by latest 12th Gen Alder Lake N100 processor (up to 3.4GHz) 4C/4T, 6Mb Smart Cache, 15W TDP, N100 mini pc delivers more than 35% higher performance than N5105/N5095 CPU. Support 7/24 stable running and responsive performance. Tiny computer pre-installed with Windows 11 Pro, also supports Linux, Ubuntu, and Debian. Ideal for developer and programmer to run dual customized OS.

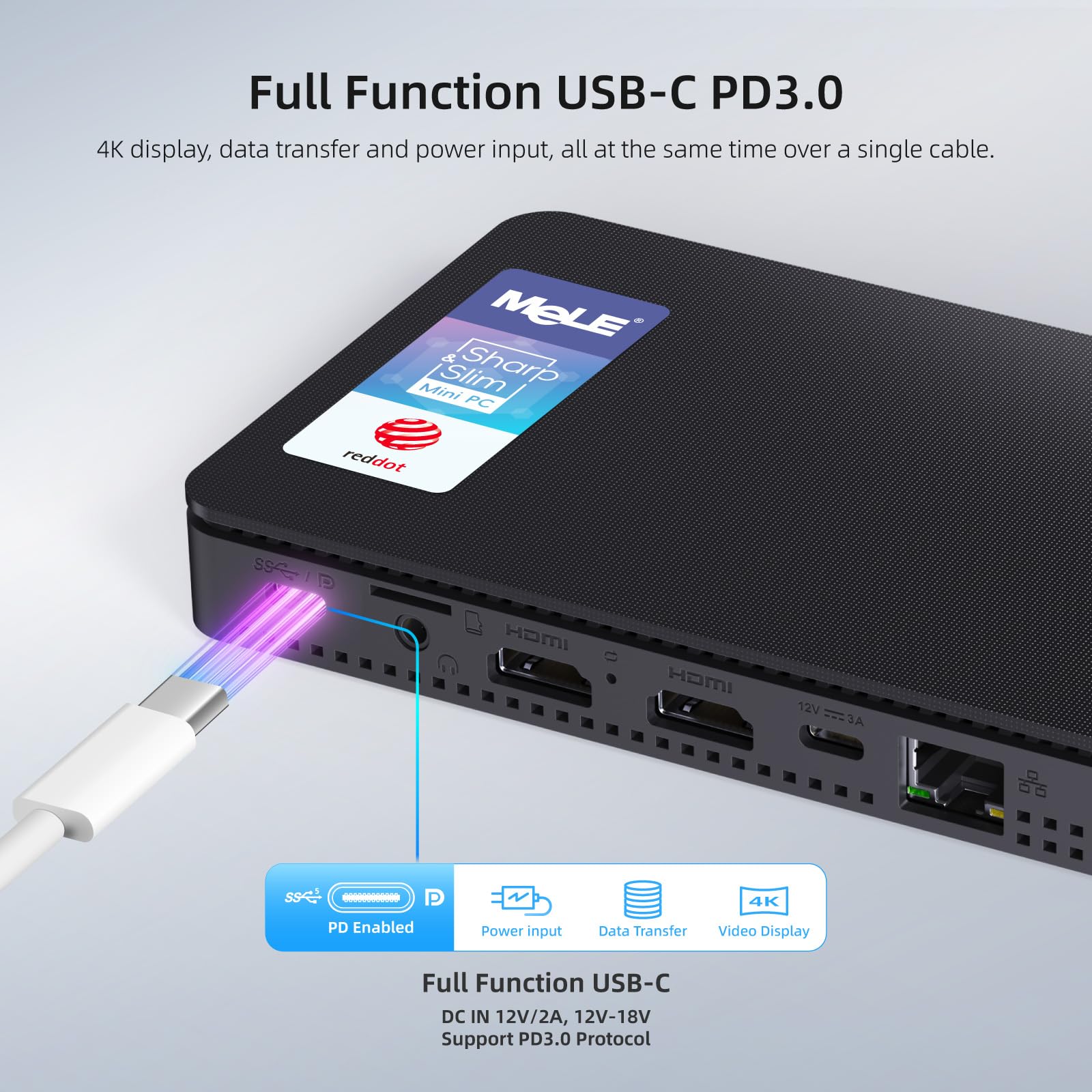

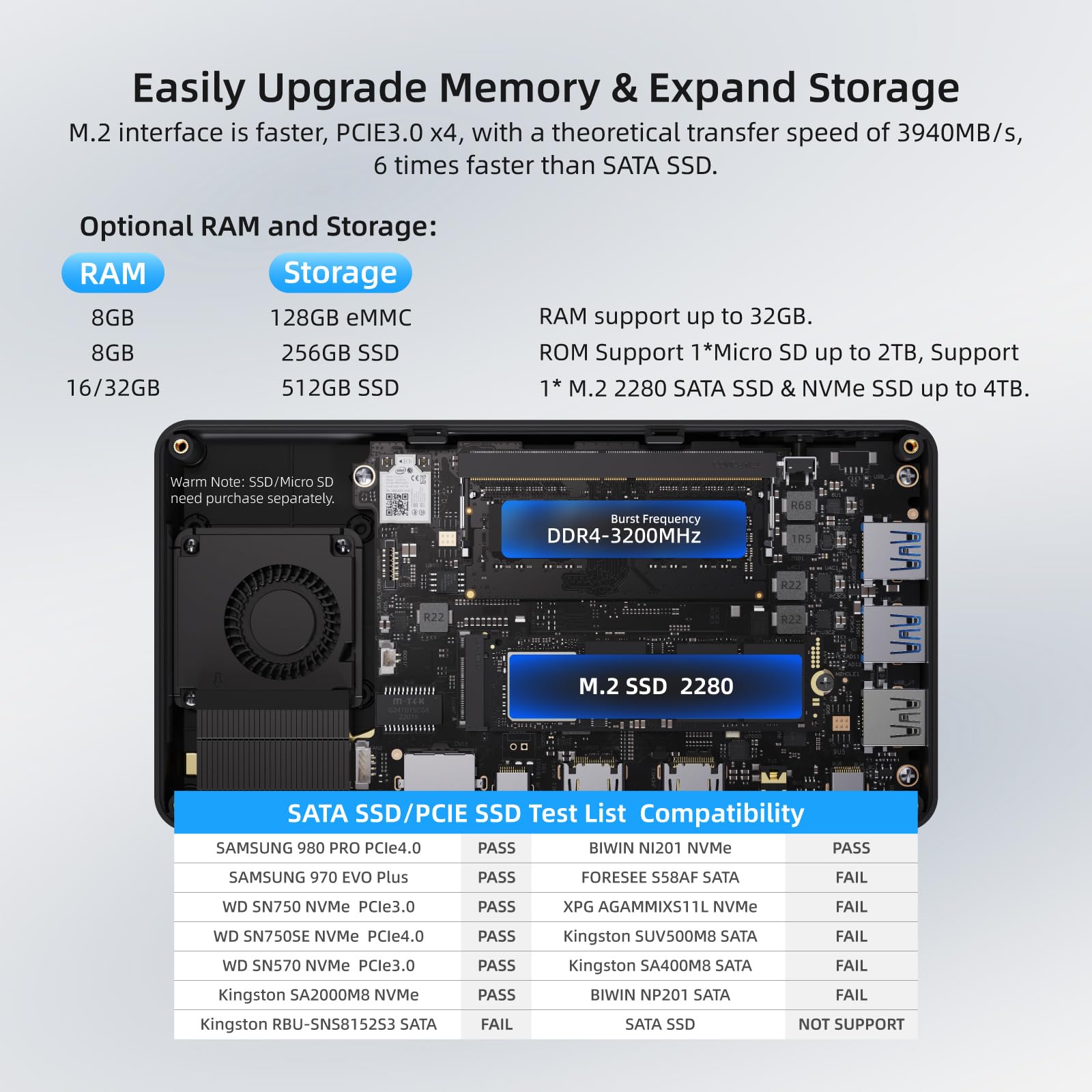

Expandable Storage & Rich I/O Ports -- Micro computer built in 32GB RAM, 512GB (256GB SSD+256GB eMMC). The DDR4 slot supports an upgraded ram up to 32GB. It include an M.2 22x80 Key M Slot for PCIe3.0 x4,theoretical data speed 3940MB/s. Support 1xM.2 2280 SATA SSD & NVMe SSD up to 4TB. 1xMicro SD slot. 2xUSB3.2 Gen2, 1xUSB2.0, 2xHDMI 2.0(4K@60hz). All-in-one USB-C port x1 adds great convenience, capable of power input (PD3.0),video display (DP1.4)and data transfer (USB 3.2 Gen 2).

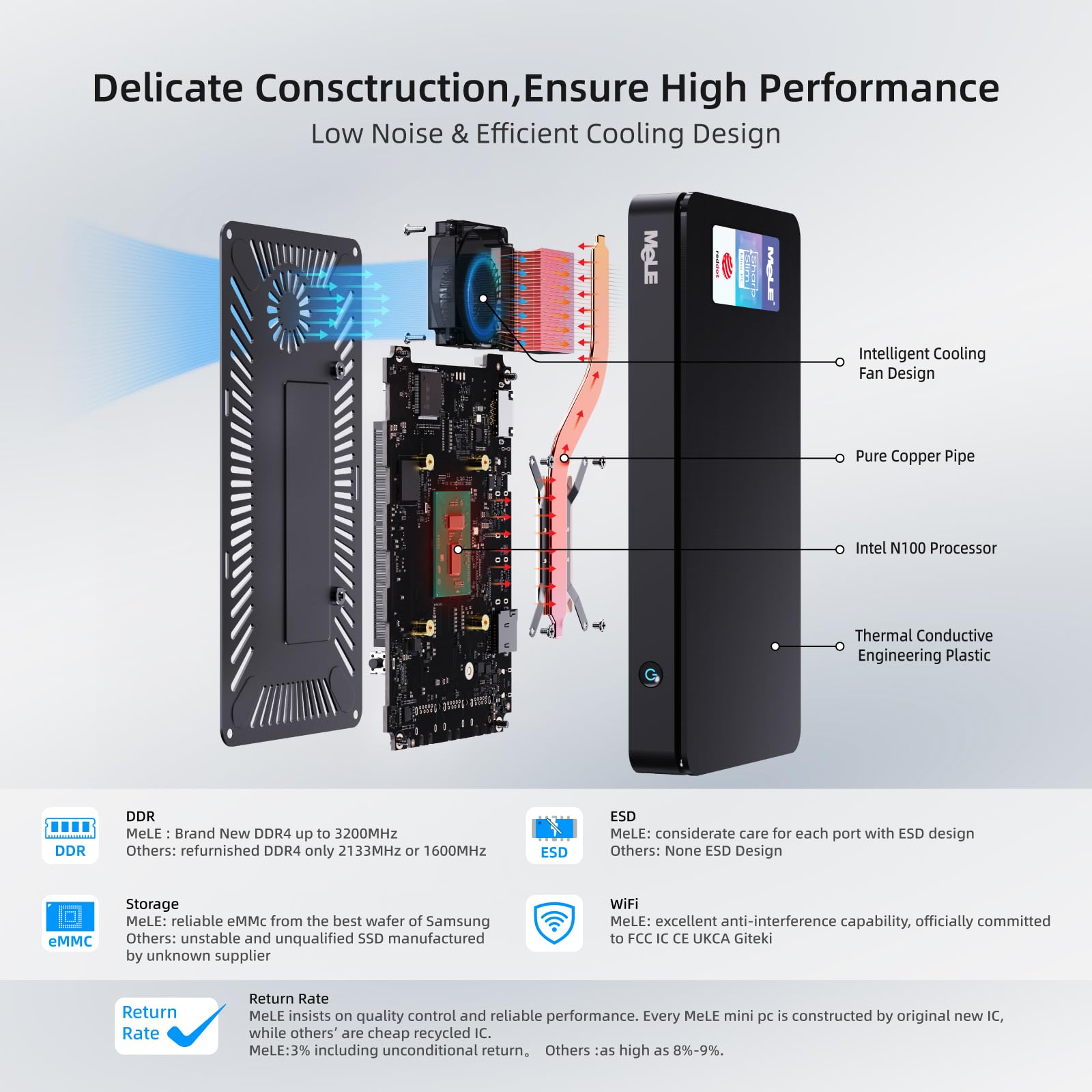

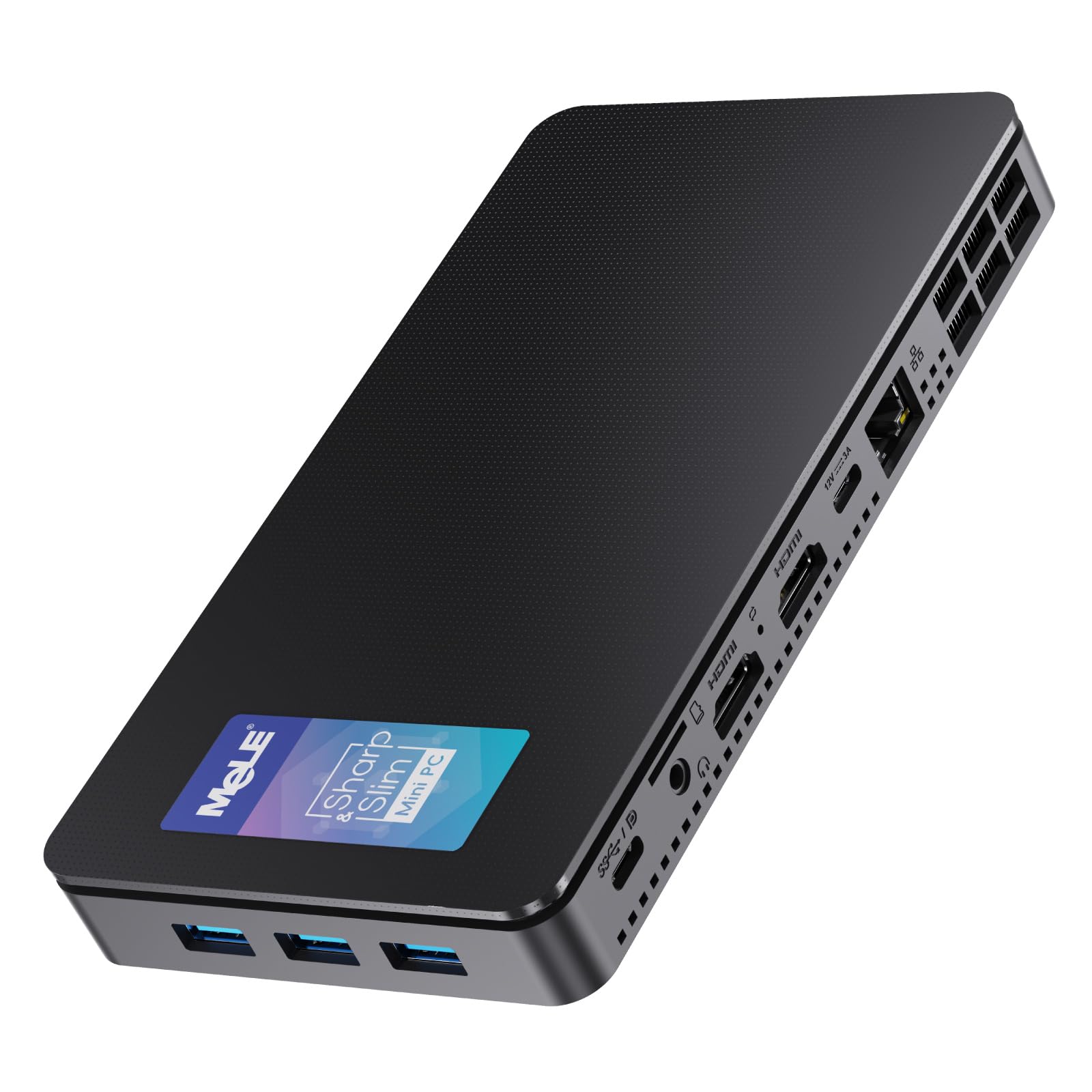

Ultra Small Size -- This small form factor pc dimensions of 7.0 x 3.7 x 0.8 inches, 0.7LB, design in a slim and compact shape. With excellent compatibility, portable pc could be easily carried around for business trip. Come with VESA mount which allows for space-saving installation on the back of a TV or monitor, improving office tidiness. Built-in small fan ensures sufficient heat dissipation and lower noise levels, providing a comfortable working environment.

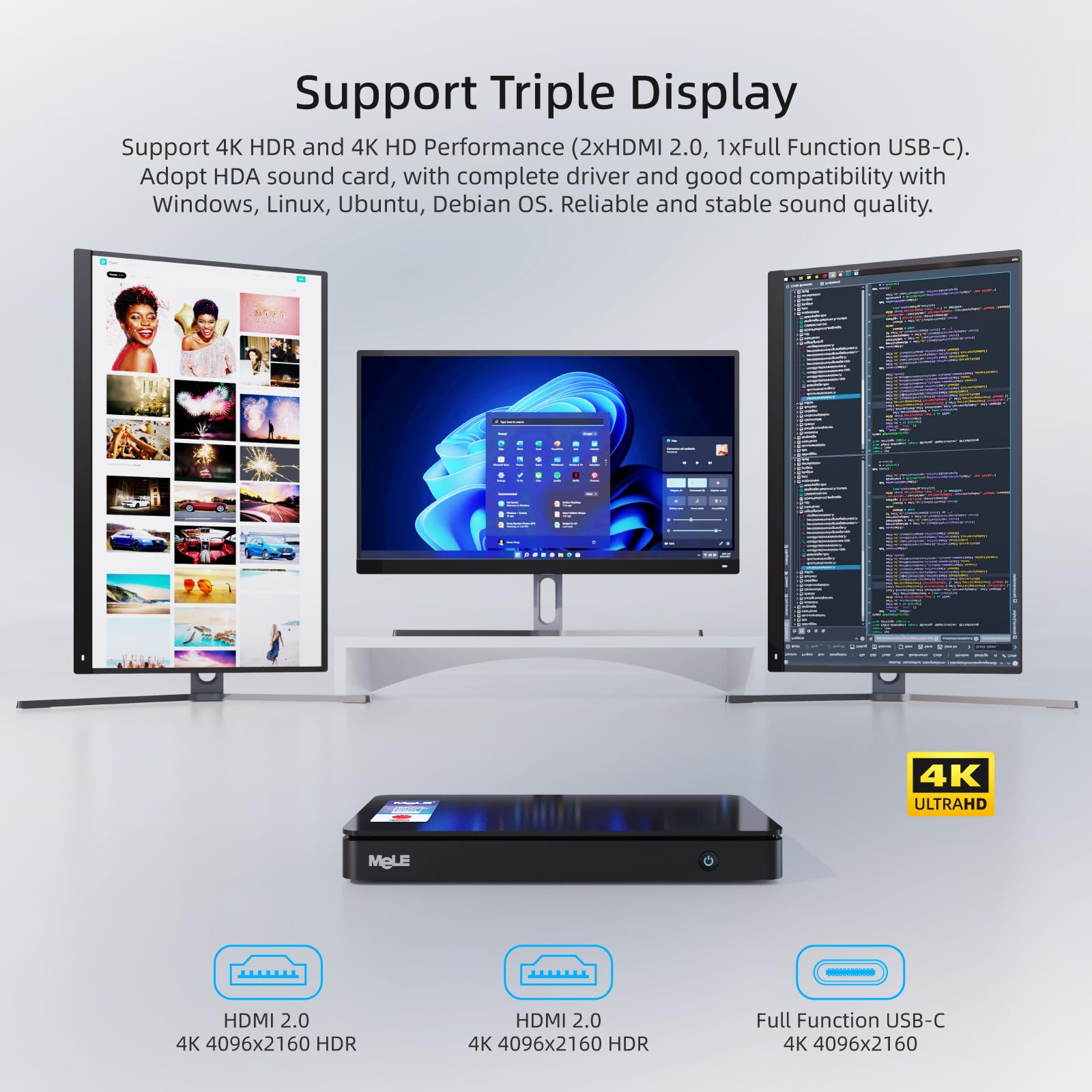

Unlocked BIOS & 4K Triple Display -- Small computer is equipped with an unlimited BIOS, supporting features such as Auto power on, PXE/iPXE boot, RTC wake, Wake on Lan, BIOS/CMOS reset. The quiet pc supports triple display via 2*HDMI 2.0 and 1*USB-C. With integrated UHD Graphics (up to 1.20 GHz), delivers powerful graphics performance and supports 4K UHD video playback (4096x2160@60Hz) & HDR. Ideal for digital signage, home entertainment and astrophotography.
Stable Connectivity -- MeLE slim mini pc built-in RJ45 LAN port for Gigabit Ethernet (10/100/1000Mbps), dual-band Wi-Fi (2.4G and 5.0G) and support Wi-Fi 5 MU-MIMO. Further more, BT 5.1 provides Better coverage, Faster transmissions, Lower power consumption than BT4.2. The portable pc provides faster and stable connection for light office work, web browsing, astrophotography, online education and so on to meet different daily usage.
Customer Reviews
On the initial boot, it was running hot from installing updates and installing applications. Definitely hot to the touch at around 70-80 C. After that, went to bios to underclock it since I didn't need all that performance. Clock to base 1.8 and turbo to 2.4. Now runs at about 55C when it's busy. Still performs well even at the new clocks and uses less power than originally configured out of the box.There's M.2 NVMe slot (no sata support) inside if you want more storage or want to switch to that as the primary boot device instead of the built-in 128 emmc storage. No ram upgrade, but 8GB should be adequate for most uses for devices at this specification. Oh, and there's an sdcard slot, so more storage expansion.
