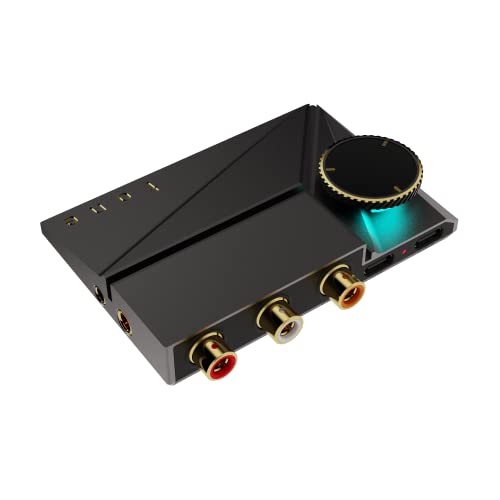

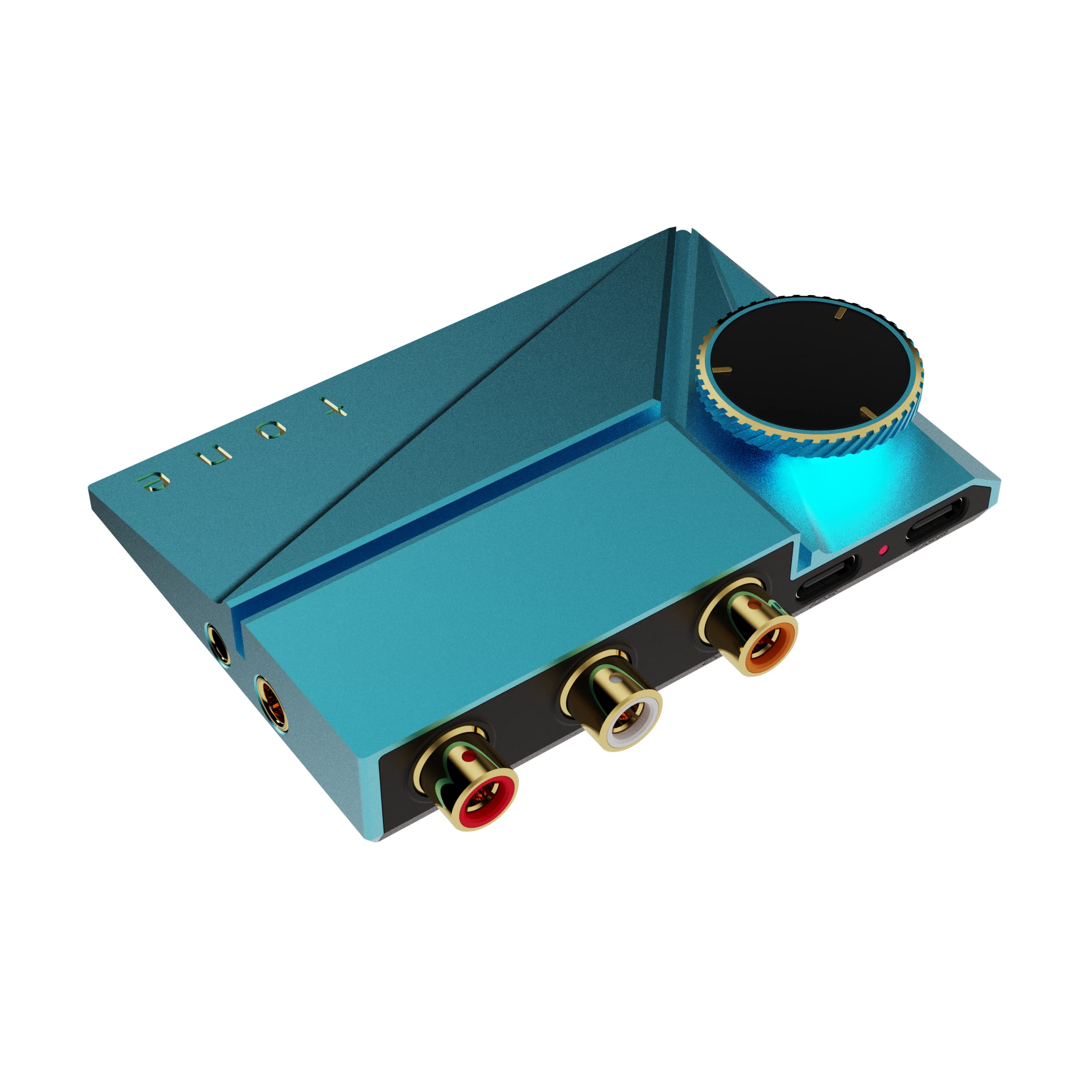

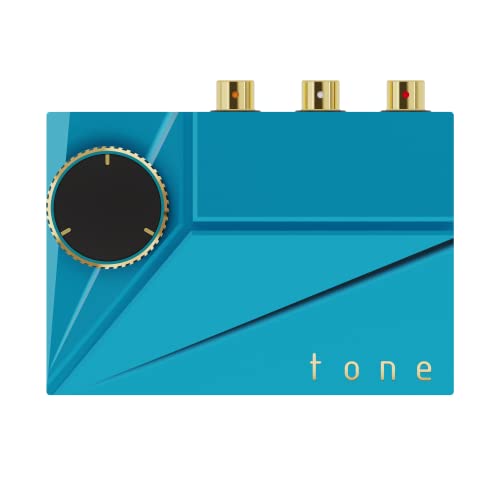

Khadas Tone2 Pro USB DAC Amp - High Resolution Desktop Digital Analog Converter & Headphone Amplifier with USB-C/I2S Inputs, 3.5mm/4.4mm/RCA Outputs - MQA Decoder for Audiophiles & Home Studio Use
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:19 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:93282980
Product Description
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Previous page XMOS XU216 Audio DAC Chip, 16 cores & 16 threads XMOS XU216 processor for MQA Full Decoder, PCM 768KHz and DSD 512 (Native). Master-quality audio. ESS High Performance DAC Chip ESS ES9038Q2M DAC chip, 4 TI OPA1612 operational amplifiers,3 RT6863D power amplifiers,balanced RCA Solid Foundation for a Low Noise Floor A pair of low noise LDOs manufactured by ADI supplies power to the operational amplifiers(1.2uVrms) Accusilicon AS318 B series, active crystal oscillators with low noise/low jitter, one SiTime SiT8209 Next page 1 Hi-Fi Experience 2 High Performance 3 Low Noise 4 Precise Clock Management 5 Balanced RCA Ultra-low Distortion Accurate Reproduction Two NJU72315 audio volume control chips with extremely low-distortion are embedded in the analog circuit. These chips control the distortion within 0.00016% and provide linear volume control and accurate reproduction of audio sources. The analog IV and LPF circuits use four high-performance TI OPA1612 operational amplifiers, with 28 high-precision resistors at an accuracy of 0.1% and a low temperature drift of ±25PPM. This provides an accurate and stable RCA output. Audio Architecture Previous page Next page 1 Multifunction Knob 2 3.5mm &4.4mm Balanced 3 Multiple Input/Output 4 Three Colors 5 Edge To Edge Perfection Why does Windows require the Khadas USB driver? The Khadas USB driver provides ASIO support and removes the latency and sample rate conversion issue experienced with the default Windows USB driver for DACs. What does MQA stand for? MQA(Master Quality Authenticated) is an award-winning audio codec technology. The master MQA file is fully authenticated for high sample rate audio and is small enough to stream and download. What is balanced-RCA? A new balanced audio connector standard, designed by Khadas for small form-factor desktop DACs. It is backwards compatible with standard RCA plugs and cables. How do I use my existing XLR-3 equipment with Balanced-RCA? Purchase the Khadas Balanced-RCA to XLR-3 adapter, it is a male Balanced-RCA plug connected to a male XLR-3 plug.
Product Features

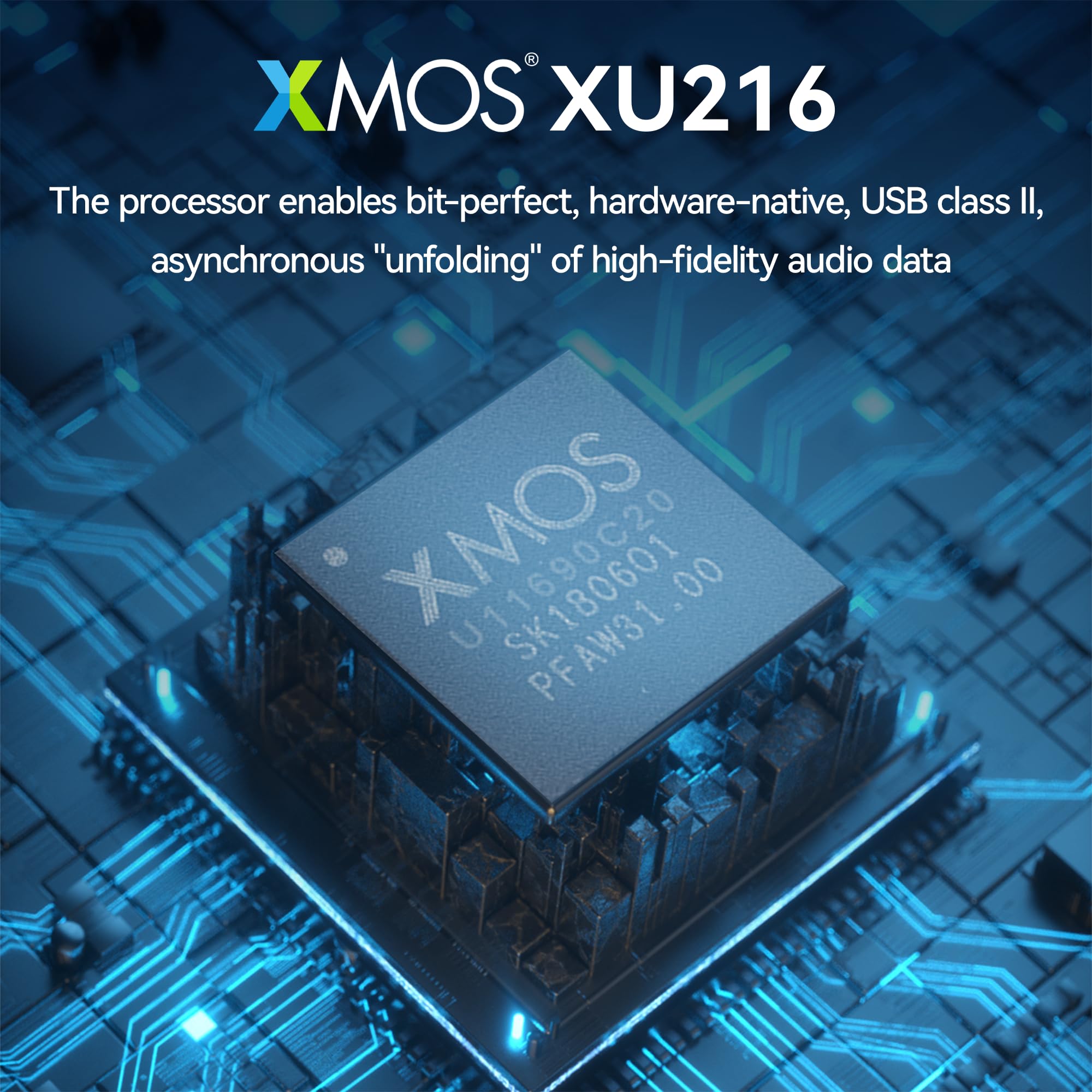

Amaze Listening ExperienceKhadas tone2 pro come with MQA decoding support The onboard XMOS XU216 processor enables bit-perfect, hardware-native, USB class II, asynchronous "unfolding" of MQA data for both web streaming and local high fidelity audio playback, enabling future-proof "original master quality" audio reproduction just as the artist intended, but at reasonable file sizes and streaming bandwidth requirements.
Powerful AmplifierPortable DAC with ESS ES9038Q2M DAC has been paired with four powerful OPA1612 operational amplifiers, and three buffer amplifiers. This 3-stage amplification pathway enables Tone2 Pro to drive a wide-range of demanding audiophile-grade headphones with impedances of up to 150 ohms.

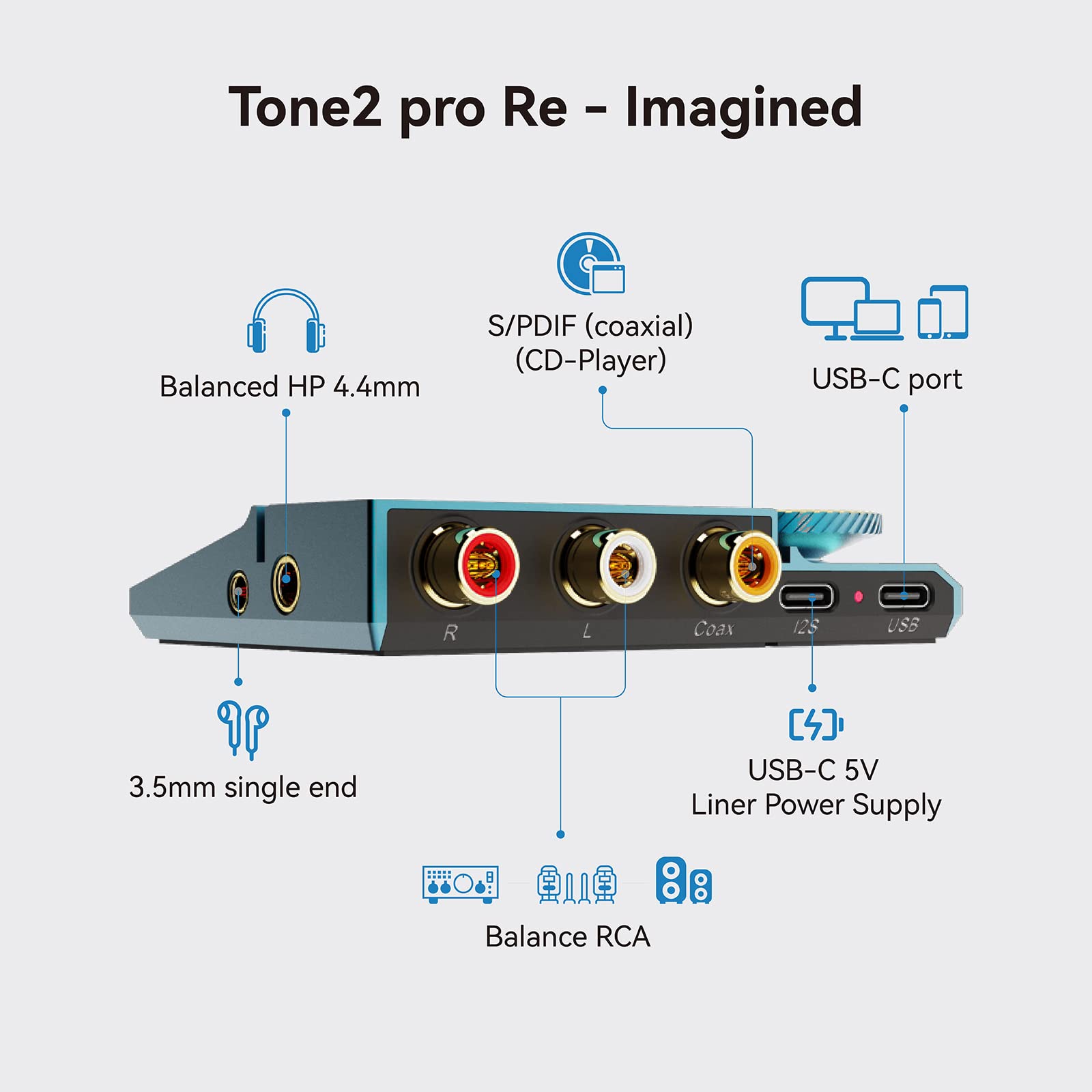

Power-Noise Isolation. Balanced headphone amp includes a 4.4 mm balanced headphone jack in addition to the standard 3.5 mm single-end jack. The Tone2 Pro's aluminum enclosure incorporates a hybrid digital/analog volume control knob, allowing you to rely entirely on analog signal attenuation for accurate sound reproduction. you can connect a 5V linear power supply to the second USB-C port whilst having USB-C data on the first for excellent power-noise isolation.

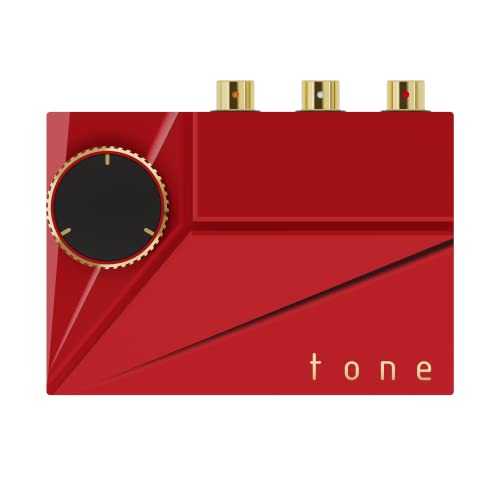

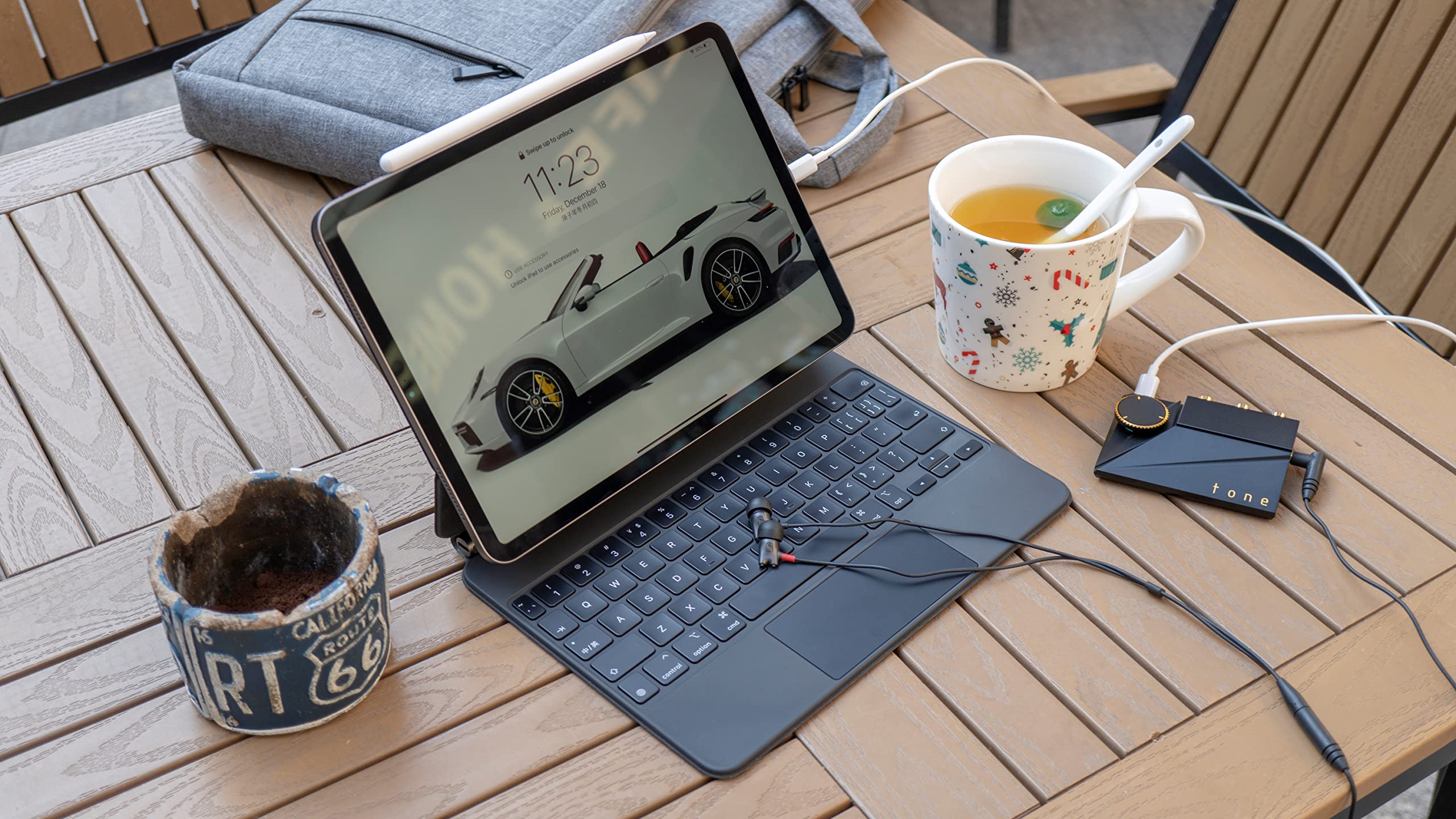

Compact Design khadas dac amplifier has a bespoke design that is unique to the DAC world. Its slim aluminum enclosure accommodates many features. The size is more portable. Lightweight design, perfect for carrying in your pocket wherever life takes you, your music never stops. We also added an industry-first balanced RCA line-out.These novel RCA ports have three signal pins instead of two, yet retain the same size and form factor as regular RCA ports.
High Performance Khadas tone2 pro up to 32bit 768KHz sample rate, Coaxial Input192KHz 24bit,bit-perfect DSD512, and -118dB THD+N,3 Stage amplification pathway(line-out).
Customer Reviews
The quality of of sound this DAC produces is astounding. I have been using another DAC, which shall go unnamed, for a year and on a whim thought I'd try this Tone2 Pro out. I use the device with a Sennheiser 650 headphones. Wow! what a difference this makes on those headphones. Brilliant, deep, flowing music, without a trace of diluting or loss. And, in its own way, it is a nice looking device too.A warning however: the single funtion knob is a trial of patience. There is nothing intuitively obvious about it, there are so many modes, functions, operations and attunements that are done with a "Push" and a "Twist," it is overladed and cannot be just intuitively implemented. The "manual" they enclose, and replicate as a PDF download on the website are no help in learning how to use this thing. A button or two might have helped. Hint: push the knob from top to bottom, from the back side to the front -- not down.After being frustrated and confounded by this device, I went back to the reviews here and was helped by being guided to the YouTube video on the Khadas website. While it is annoying to get through, it does give a demonstration that gets one over the hump of using this thing.In the meantime, enjoy the sound of the music this device gives you.
